Preorder Traversal of binary trees

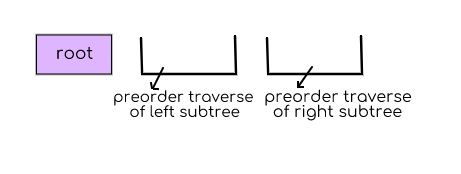

To preorder a non-empty binary tree, below operations are preformed recursively of each node

  1. visiting the root node
  2. traversing the left subtree
  3. traversing the right subtree
Preorder Traversal of binary trees 1

the word “pre” specifies that the root node is accessed prior to any other node from the left and right subtrees

lets see one example:

Preorder Traversal of binary trees 2

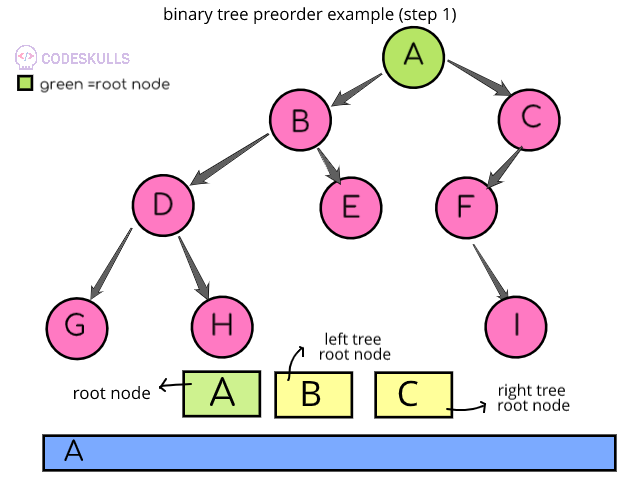

step1: in the above binary tree, A is the root node so it accessed first, then in pre-order next priority will be left subtree root node B

Preorder Traversal of binary trees 3

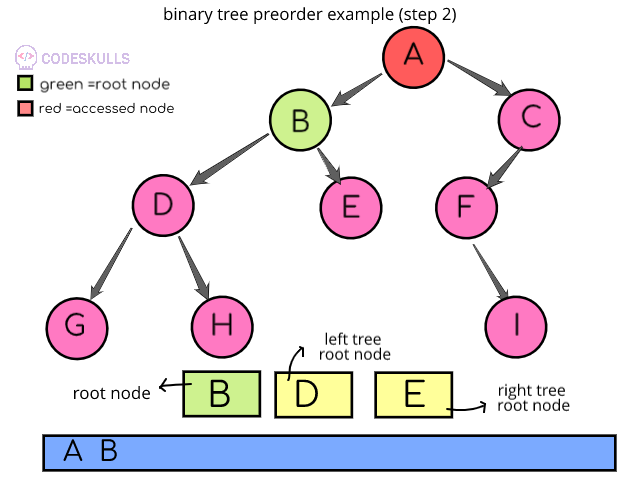

step2: now, B is the root node so be will be accessed and next the left subtree root D will be accessed

Preorder Traversal of binary trees 4

step 3: now, D is the root node so be will be accessed and next the left subtree root G will be accessed

Preorder Traversal of binary trees 5

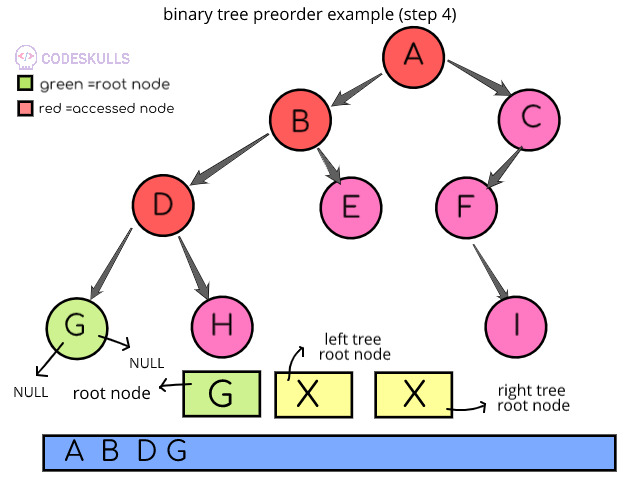

step 4:G is the root node, there are no child nodes for the G node, so the next again parent node of G node, D node will be accessed to perform preorder traverse of the right subtree

Preorder Traversal of binary trees 6

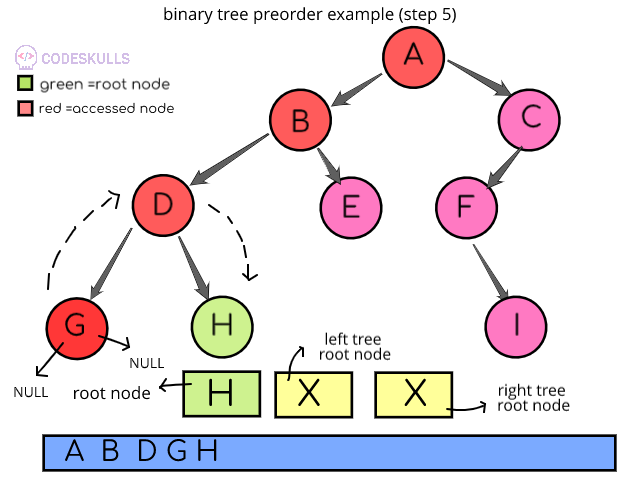

step 5:after moving from node G , node D will be accessed then left subtree of node D is completed so, right subtree will be accessed, right subtree tree contains node H

Preorder Traversal of binary trees 7

step 6:after moving from node H, then its parent node D will be accessed, now the preorder operation is done on both left and right subtree of node D,so next node B will be accessed, from the node B , right subtree node E will be accessed

Preorder Traversal of binary trees 8

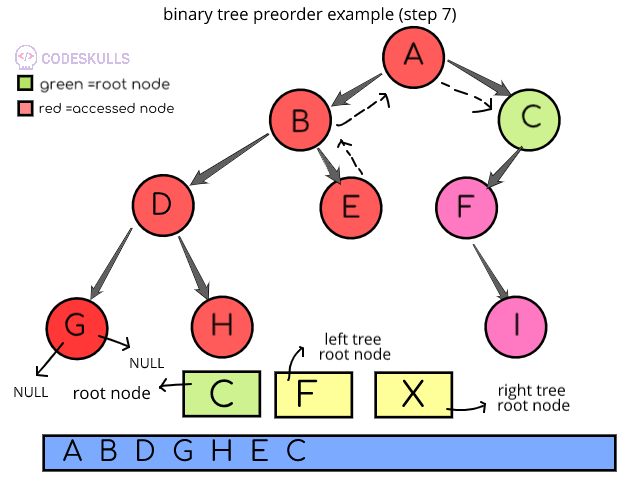

step 7:after moving from node E, then its parent node B will be accessed, now the preorder operation is done on both left and right subtree of node B,so next node A will be accessed, from the node A , right subtree node C will be accessed

Preorder Traversal of binary trees 9

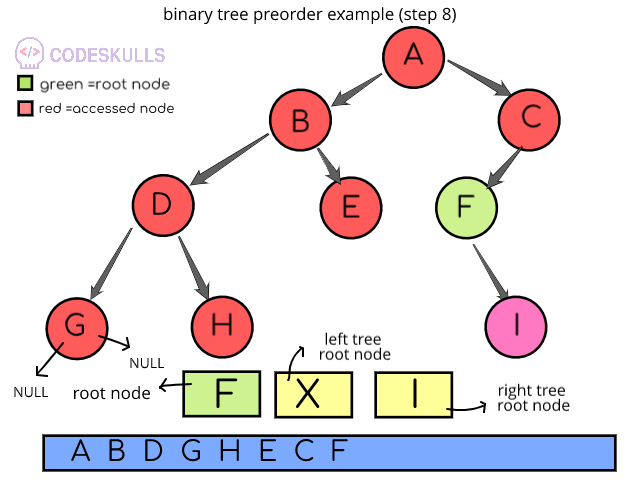

step 8:from node C , left subtree root will be node F, node F will be accessed

Preorder Traversal of binary trees 10

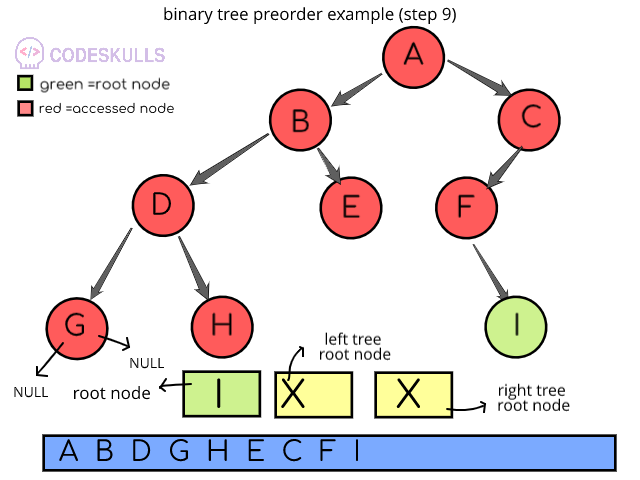

step 9:there is no left subtree for node F, so right sub-tree root node I will be accessed
